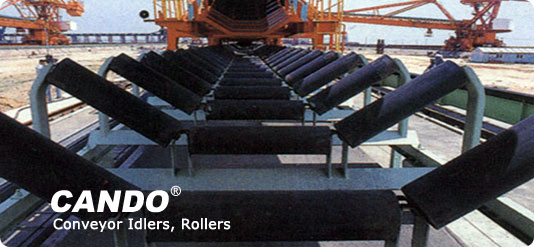

Conveyor Idlers, Rollers

Conveyor Idlers, Rollers

Since experiencing in exported for almost 10 years, we are able to supply high-quality idlers with excellent structure, low resistance coefficient, long lifetime (more than 20,000 hours) and a fine waterproof performance.



Conveyor roller series

Features

  • Strong construction
  • Better balance
  • Low T.I.R
  • Accurate bearing alignment
  • Maximum sealing efficiency
  • Low running resistance

Structure

TUBES:
Accurately cut to length and square, to ensure concentric alignment of the welded bearing housing.

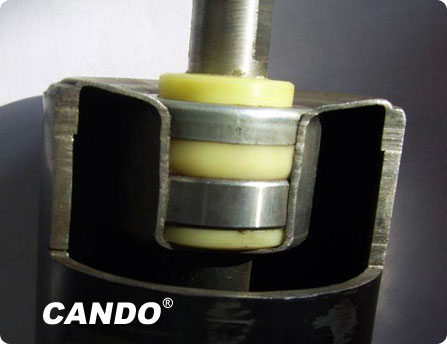

BEARING HOUSINGS:

  • Deep drawn from high grade carbon steel.
  • The bearing seat is accurately coined to meet the bearing manufactures specified tolerances.
  • The seal seats are accurately sized to give an interference fit for the labyrinth seal arrangement.

BEARINGS:
Deep Groove Ball Bearings.Bearings are depended on applications and customer specifications.

ROLLER SHELL ASSEMBLY:
Both bearing housings accurately and simultaneously auto M.I.G. welded to the ends of the tube.

PRIMARY SEALS:
Non-friction, triple labyrinth grease filled seal is fitted.

Alternative Seal Types:
Flame retardant multi-lip seals can be fitted if requested. (Not as standard)

FINISH:
One coat yellow or red as standard, or to suit customer specifications.

Diameters available:
60mm, 76mm, 89mm, 108mm, 127mm (5"), 133mm, 168mm (6½")

Types:
Trough, Return, Impact, Disc Return

Product Range

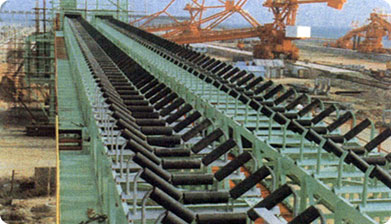

We have extensive product range and could supply Troughing, Impact, Rubber disc, and other type idlers. The materials can be Steel, PE, PU, HDPE.
